SITCOMTN-063: TMA 3.5 degree offset performance

  • Elana Urbach

Latest Revision: 2023-03-14

Note

This technote is a work-in-progress.

1 Abstract

Checks the performance of the TMA under 3.5 degree random offsets tracking for 32 seconds (and back to original position) in the full range of azimuth and elevation (another az-el grid). Checks repeatability, jitter, slew and settle against encoders in EFD, star trackers, and accelerometers. Requirements that must be met are documented in LTS 103.

2 Methodology

On March 9, 2023, we used the following test strategy to check the stability of the TMA under slews.

  1. Take 3 images in one location.

  2. Move 3.5 degrees in a random direction and take 3 images there.

  3. Return to location (1) and take three more images.

  4. Repeat steps 2 and 3 four more times.

  5. Move to new location and repeat steps 1 – 4.

3 Analysis

For each central location we plot:

  1. The ra and dec of all images in the set (see Fig. 1).

  2. The ra and dec offset for the central position relative to the first image taken (without wcs). Different colors correspond to different repetitions in step 3 (see Fig. 2).

  3. The calculated ra and dec offset of the central position relative to the first image taken (with wcs). Different colors correspond to different repetitions in step 3 (see Fig. 3).

_images/ellipse.png

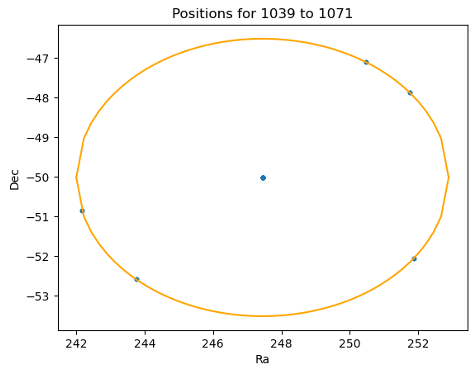

Figure 1 A sample set of points with the center position and 5 points offset by 3.5 degrees in a random direction.

_images/radecres.png

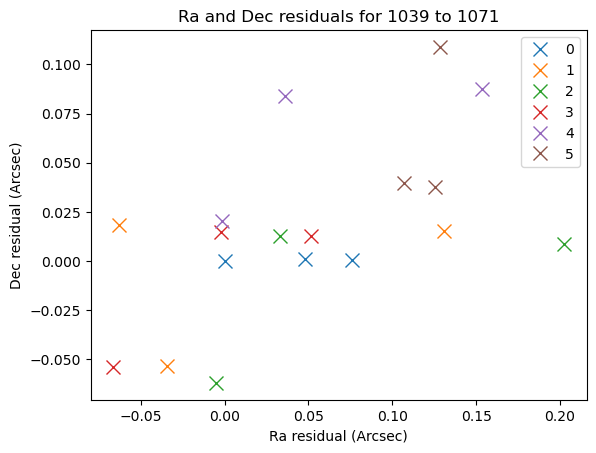

Figure 2 The ra and dec offset from the pointing model for the images in the central positon (without wcs). Different colors correspond to different numbers of offsets.

_images/Calcradecres.png

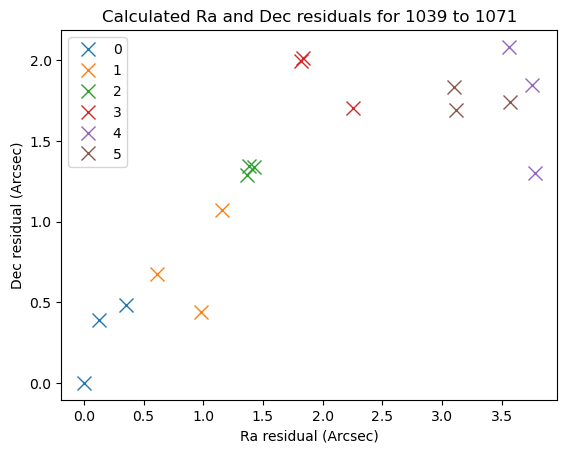

Figure 3 The calculated ra and dec offset from the pointing model for the images in the central positon (using wcs). Different colors correspond to different numbers of offsets.

We also calculate the drift and jitter in ra and dec over time.

4 Summary
